Mobile Quarry Crushing

Move Crushing and Screening Closer to the Quarry Face.

A mobile line combines feeding, crushing, screening and conveying on relocatable units. The road, ground and relocation duty decide whether mobile is the right direction.

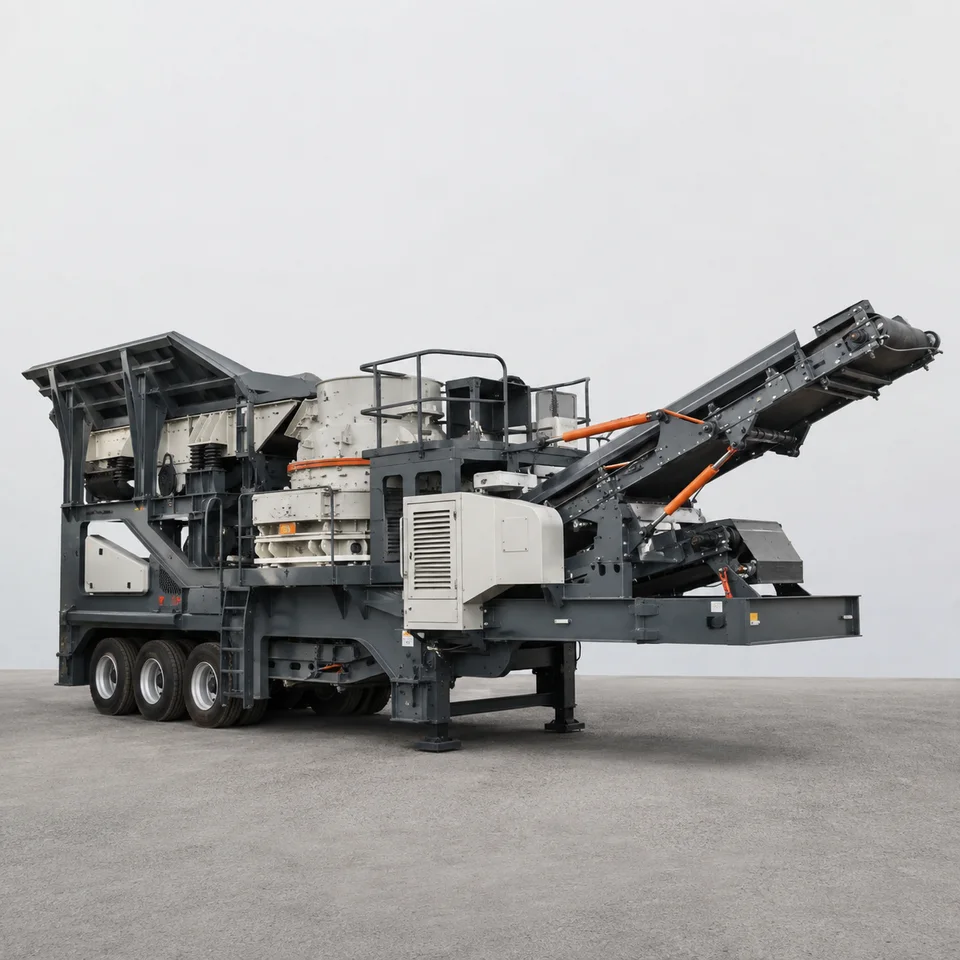

Mobile crushing plant equipment illustration — Concept equipment illustration. Not a customer-project photograph.

Suitable Materials / Application

Quarry duties where relocation changes the line design.

Short campaign sites

Relocatable units can reduce repeated fixed civil work.

Multiple quarry faces

Equipment can move closer to changing raw-material locations.

Temporary aggregate production

Setup and transport limits must be checked before selection.

Numbered Production Line

Four connected functions on relocatable units.

Conceptual wheel-mounted mobile quarry crushing and screening line — Conceptual process illustration. Numbered equipment matches the list below; final machine type and layout depend on the actual duty.

How the Line Works

Four functions from feed to mobile stockpiles.

01 Raw material enters the mobile feeder.

02 The mobile jaw unit performs primary crushing.

03 Crushed material moves to the mobile screen.

04 Folding conveyors discharge the separated products.

Equipment in the Line

Each numbered machine has one job.

Mobile Feeder

Meters raw material into the crushing unit.

Mobile Jaw Crushing Unit

Performs primary crushing on a relocatable chassis.

View Product →

Mobile Screening Unit

Separates the crushed material into product sizes.

View Product →

Folding Conveyors

Discharge the separated products into stockpiles.

View Product →

Real Video / Project

See related equipment in real footage.

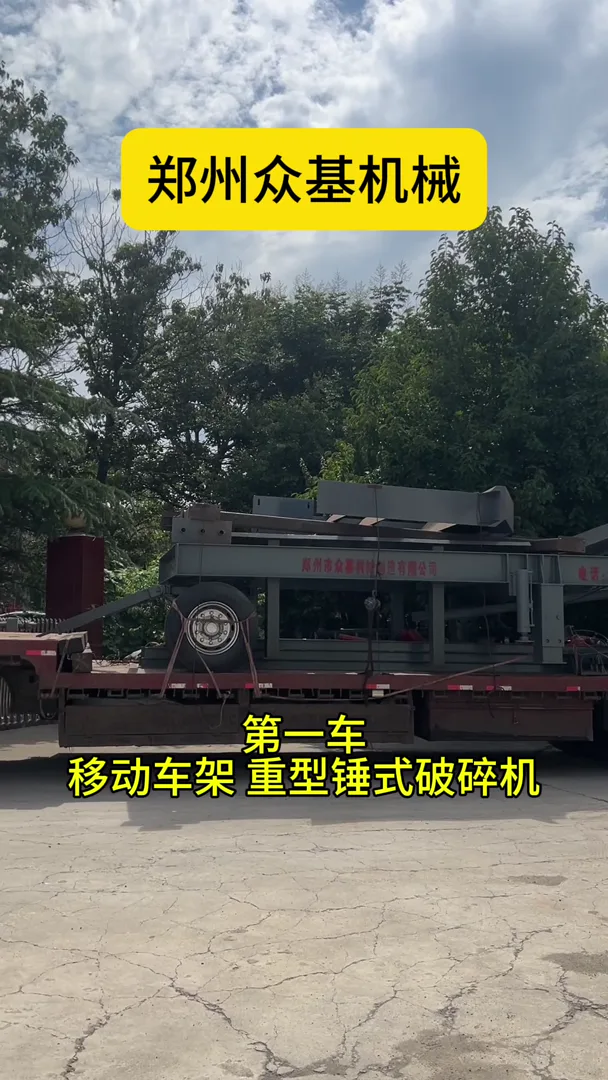

Real mobile crushing and screening equipment dispatch video cover

Watch Real Mobile EquipmentDispatch and equipment reference

Discuss This Production Line

Planning a relocatable quarry line?

Start with the material, relocation frequency and transport limits.

Discuss This Line

Technical Notes

Mobile equipment does not automatically reduce every project cost. Road limits, relocation frequency, feeding method, ground condition, power source and discharge space must be checked before choosing mobile instead of stationary equipment. For mobile layouts, compare tracked vs wheeled configurations against these site conditions.
