Production Line Solutions

Choose the production line closest to your application.

Start with the feed material and its condition, largest feed size, required product sizes and target output. Then compare a fixed layout with equipment that must move between sites. Each drawing is a process concept; final equipment selection needs project data.

Eight Production Lines

View the complete line.

Conceptual sand and aggregate production line — Conceptual process model

Sand & Aggregate Production Line

Start here when finished aggregate sizes and a fixed-site crushing and screening flow are the main questions.

View Production Line

Conceptual gold ore crushing and grinding preparation line — Conceptual process model

Gold Ore Crushing & Grinding Preparation

View Production Line

Conceptual iron ore crushing and grinding preparation line — Conceptual process model

Iron Ore Crushing & Grinding Preparation

View Production Line

Conceptual quartz sand preparation line — Conceptual process model

Quartz Sand Preparation

View Production Line

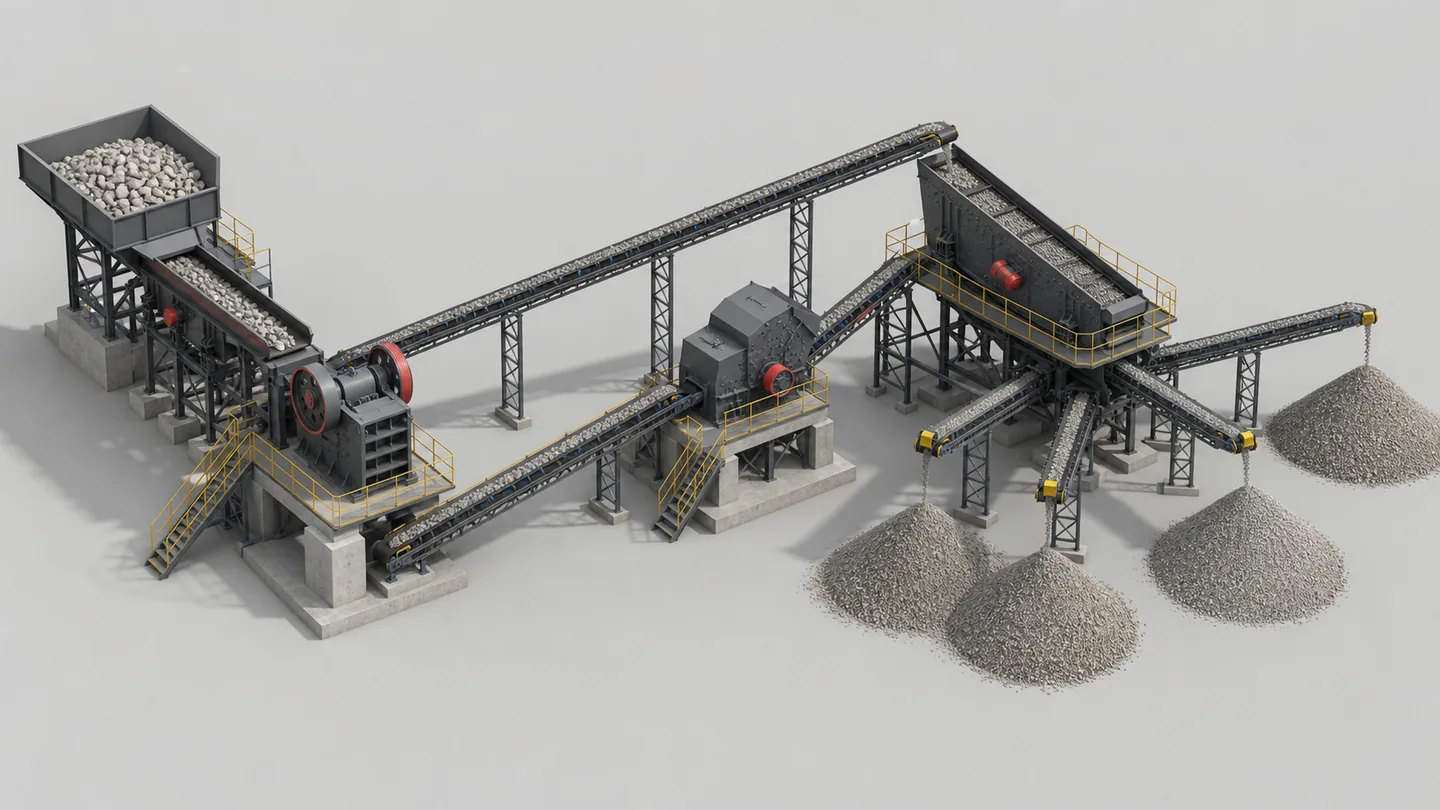

Conceptual limestone crushing and screening line — Conceptual process model

Limestone Crushing & Screening

Use the limestone-specific checks when moisture, clay or acceptable fines may change crusher and screen choices.

View Production Line

Conceptual mobile quarry crushing and screening line — Conceptual process model

Mobile Quarry Crushing

Compare this route when relocation frequency, site access and transport limits matter alongside crushing duty.

View Production Line

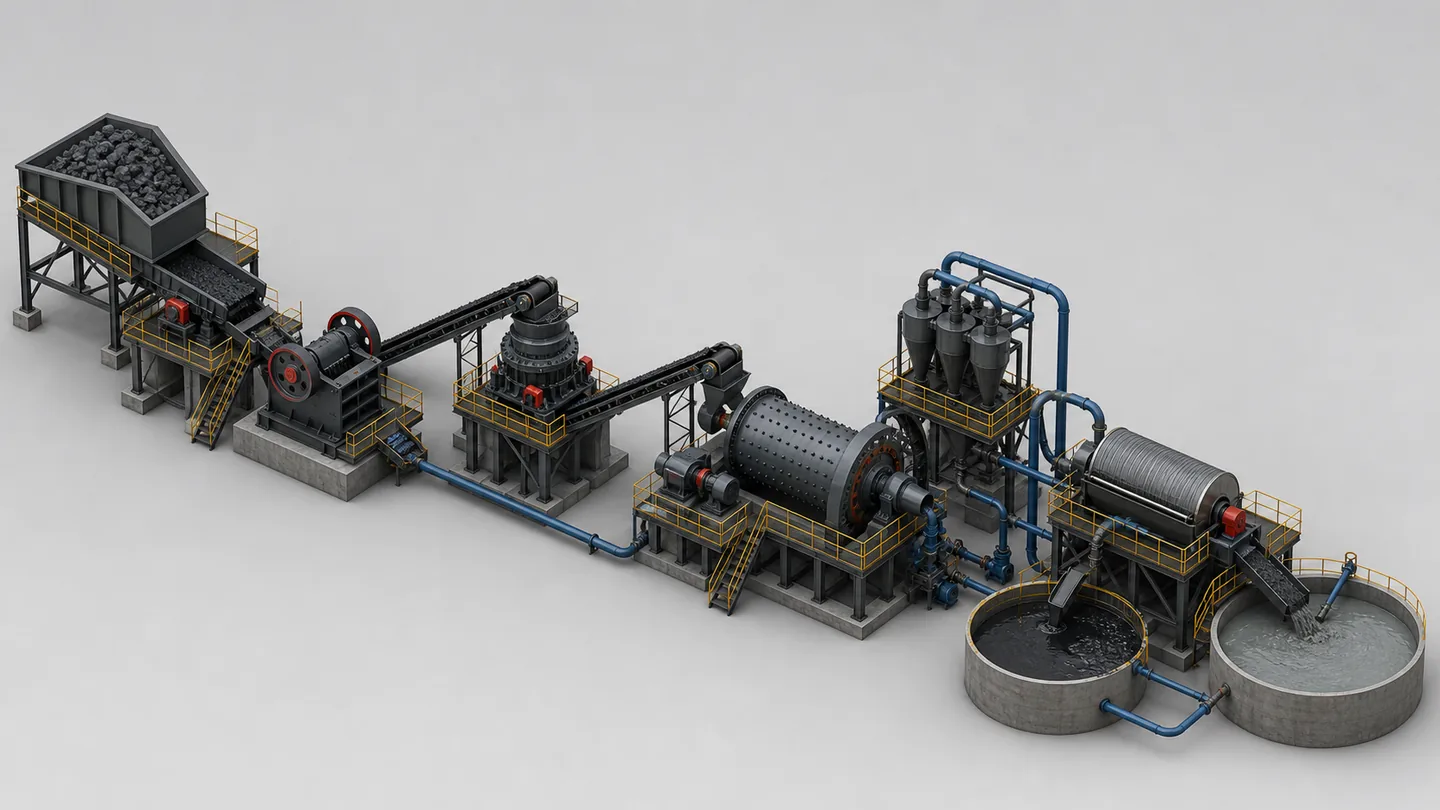

Conceptual magnetite processing preparation line — Conceptual process model

Magnetite Processing Preparation

View Production Line

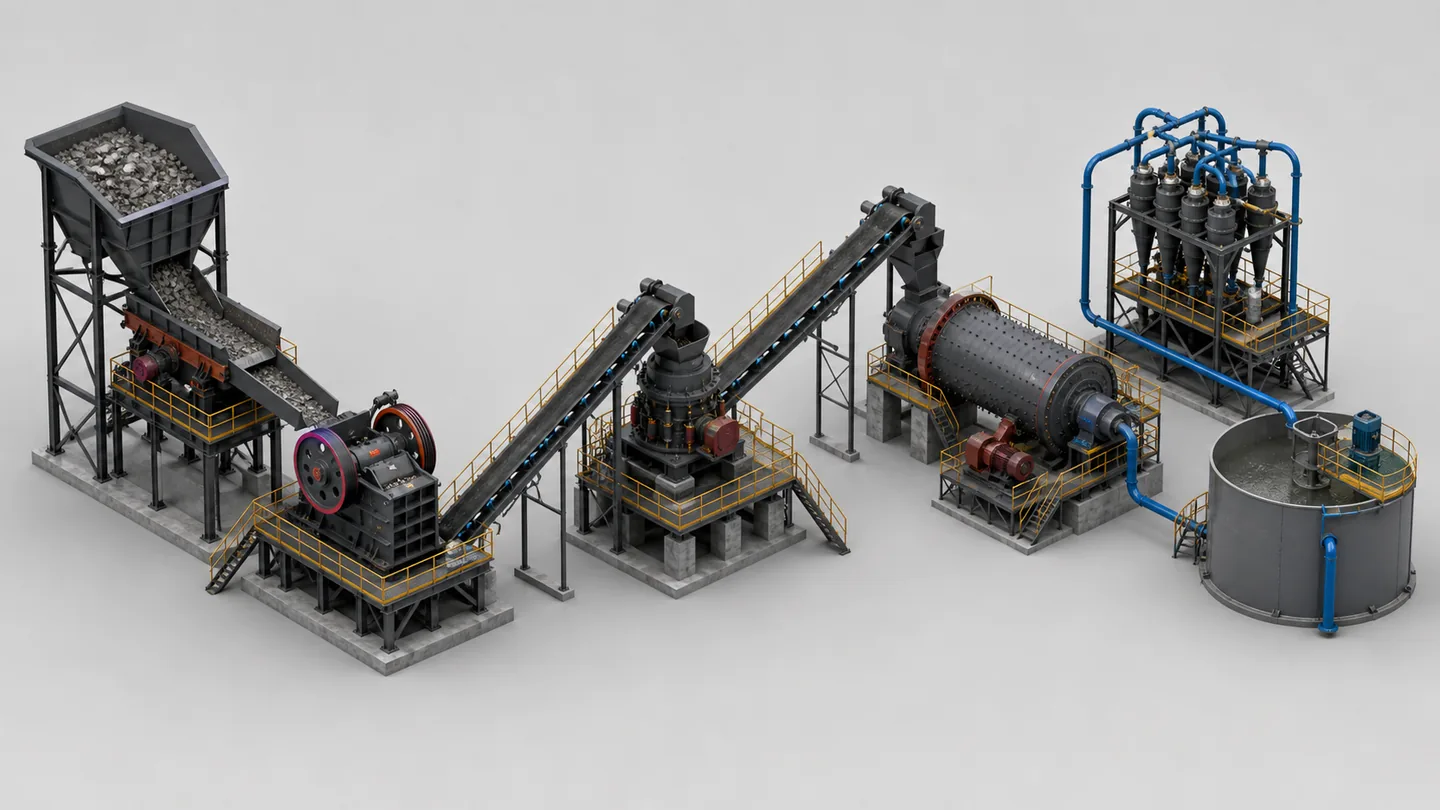

Conceptual copper ore crushing and grinding preparation line — Conceptual process model

Copper Ore Crushing & Grinding Preparation

View Production Line

Before discussing a complete line, check the published jaw crusher model references, the screening and conveying site photograph and real workshop crushing-equipment video. These document equipment and site context, not the output or supply scope of any illustrated line.
