Magnetite Processing Preparation

Prepare Magnetite Ore Before the Separation Circuit Is Finalized.

Crushing, grinding and classification create a controlled feed. Magnetic separation equipment and operating targets must follow representative mineral testing.

Ball mill equipment illustration
Concept equipment illustration. Not a recovery or grade claim.

Suitable Materials / Application

Magnetite-bearing ore that needs controlled preparation.

Coarse mine feed

Primary and secondary crushing prepare the mill feed.

Fine liberation target

Grinding and classification must follow representative test data.

Magnetic-separation feed

Preparation ends at a test-defined size before separation is finalized.

Numbered Production Line

Five preparation stages before magnetic separation.

Conceptual magnetite ore crushing grinding and classification preparation line 01Vibrating Feeder 02Jaw Crusher 03Cone Crusher 04Ball Mill 05Classifier
  1. 01Vibrating Feeder
  2. 02Jaw Crusher
  3. 03Cone Crusher
  4. 04Ball Mill
  5. 05Classifier
Conceptual process illustration. Numbered equipment matches the list below; final machine type and layout depend on the actual duty.

How the Line Works

Five preparation stages before separation.

01 Ore enters through a controlled feeder.

02 Primary crushing reduces the largest feed.

03 Secondary crushing prepares the mill feed.

04 The ball mill reduces particle size.

05 Classification controls the size sent to the test-selected separation stage.

Equipment in the Line

Each numbered machine has one job.

Vibrating feeder equipment illustration
01

Vibrating Feeder

Provides controlled feed to primary crushing.

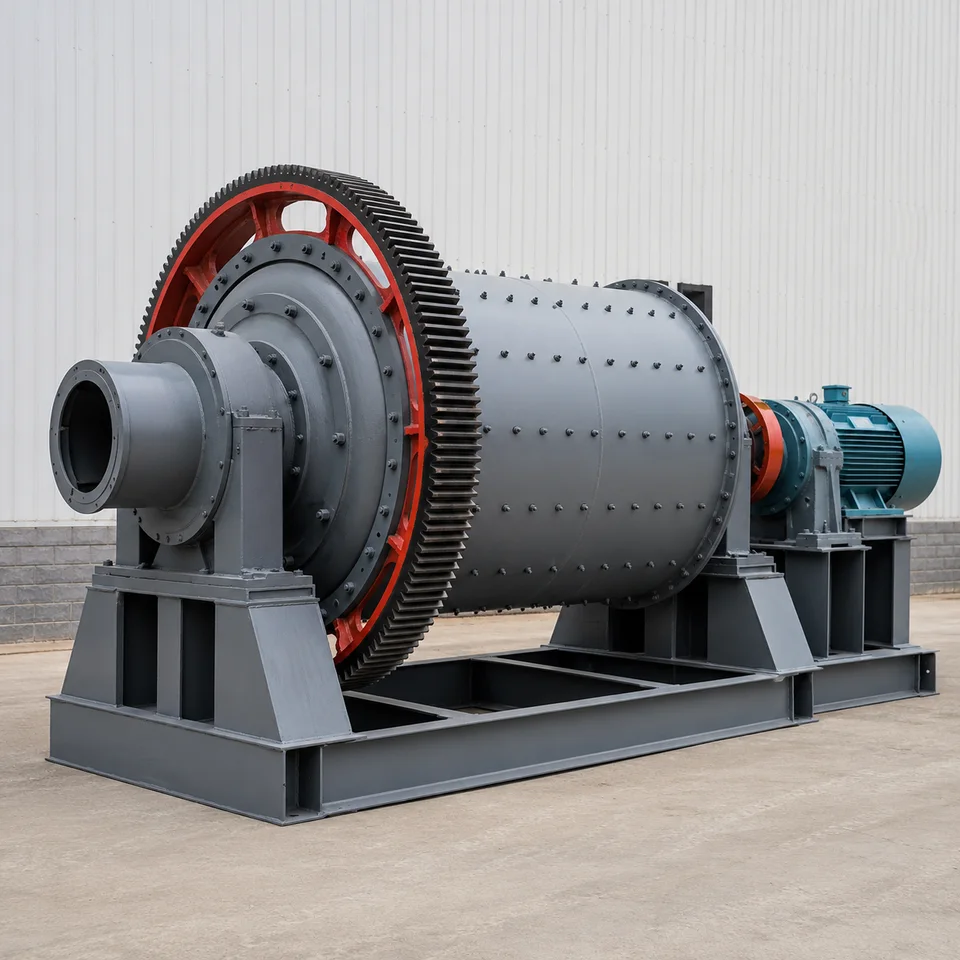

Ball mill equipment illustration
04

Ball Mill

Grinds the ore toward the test-defined liberation size.

View Product →

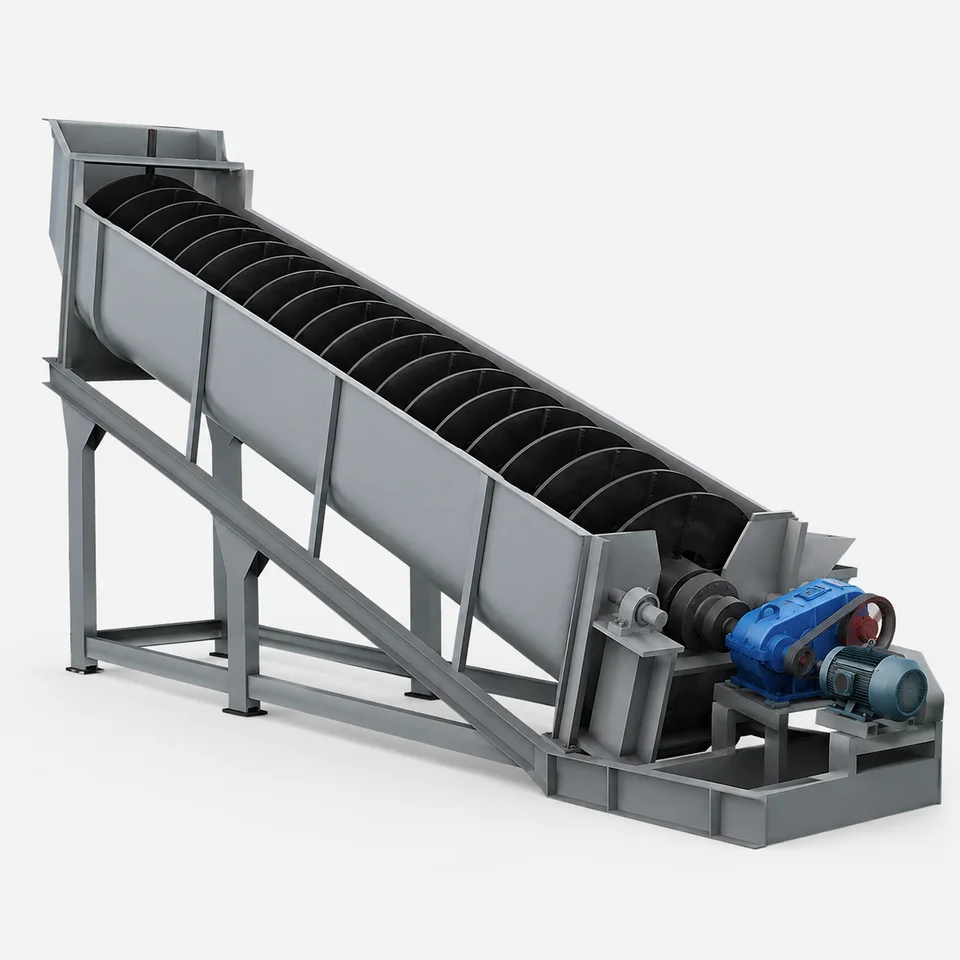

Spiral classifier equipment illustration
05

Classifier

Controls the prepared particle-size range and circulating load.

Real Video / Project

See related equipment in real footage.

Zhongji equipment workshop video cover Watch Related Workshop EquipmentReal workshop reference; magnetite duty must be confirmed

Discuss This Production Line

Planning magnetite ore preparation?

Start with the mineralogy, capacity and test-defined liberation size.

Discuss This Line
Technical Notes

This page stops at crushing, grinding and classification preparation. Magnetic properties, liberation size and representative testwork must determine the separation circuit; recovery and concentrate grade are not guaranteed here.
